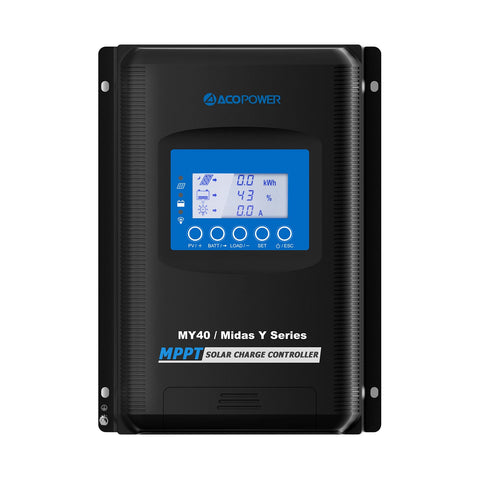

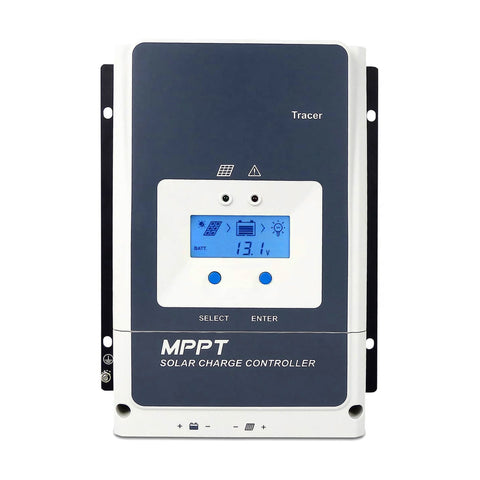

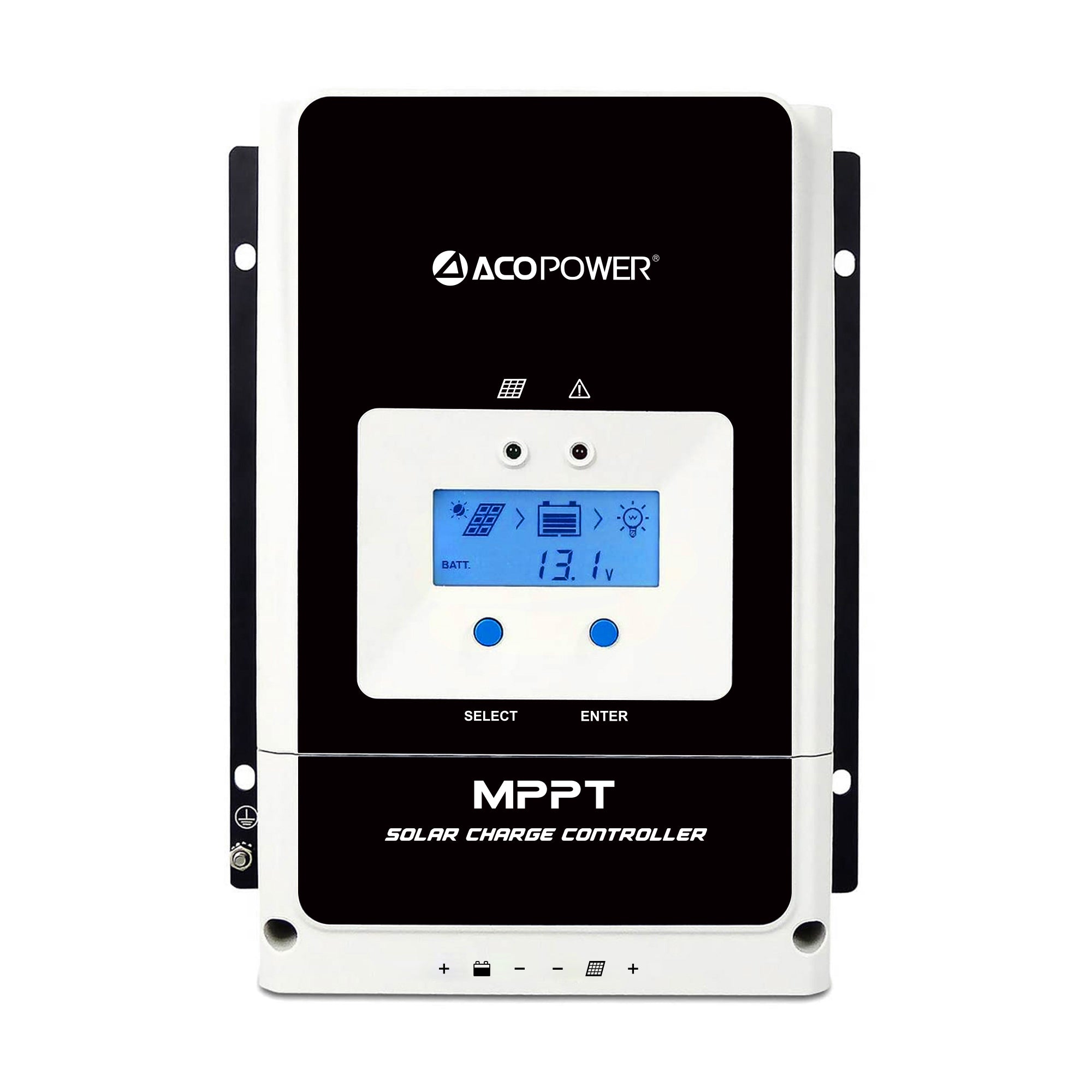

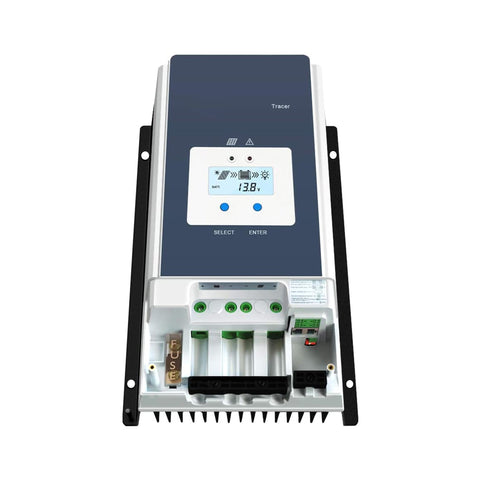

ACOPOWER Midas MPPT Solar Charge Controller——30A, 40A, 50A, 60A
AdventureCarousel Pre-order now! 🌟Shipping starts September 15th! 🎉
Free Shipping to United States...
Estimated Dispatch within 2 Business Days
more
Estimated Dispatch within 2 Business Days
Arrive within 2-7 Business Days
*US,AU,CA only. For other regions, click "More"
more
*US,AU,CA only. For other regions, click "More"
Pickup available at Walnut USA
*Usually ready in 24 hours
more
*Usually ready in 24 hours
30-Day Return Policy｜18-Month Warranty Protection
more
Ways To Pay
Don't Miss Top Accessories
-
Regular price £185.00Sale price £185.00 Regular price£185.00

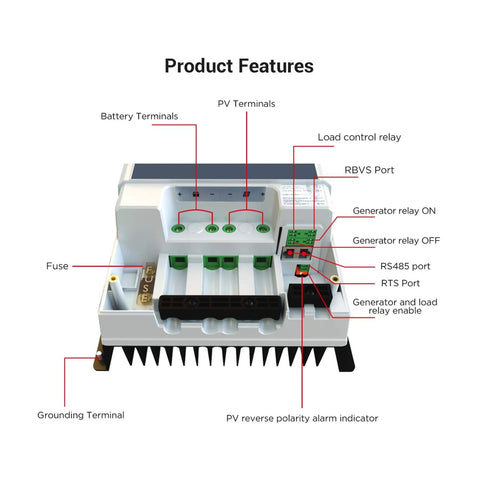

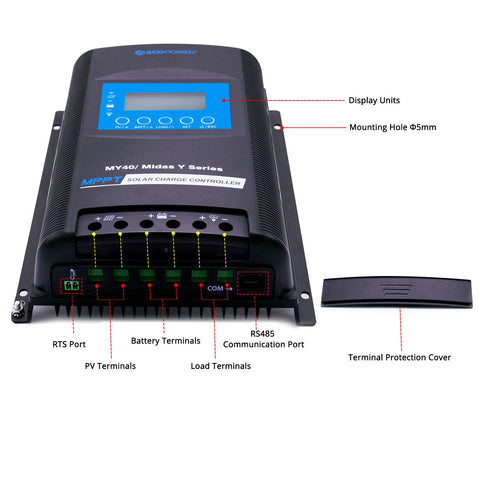

Features
Unique Design Controller
High-quality insulation materiales ensure maximum protection against electrical hazards, providing a secure and reliable charging solution.
Stay Cool With Quiet Bladeless Fan
Made of robust die-cast aluminum, the heat sink that comes with the Rover 60A Solar Charge Controller allows the heat flow away through tubes to ensure maximum charging efficiency and safety of critical components.
Specifications
Specification
| MPPT 30A | MPPT 40A | MPPT 50A | MPPT 60A | |
|---|---|---|---|---|
| System nominal voltage | 12/24VDC or Auto | 12/24VDC or Auto | 12/24/36/48VDC or Auto | 12/24/36/48VDC or Auto |
| Rated charge current | 30 Amp | 40 Amp | 50 Amp | 60 Amp |
| Rated discharge current | 30 Amp | 40 Amp | 50 Amp | 60 Amp |
| Battery voltage range | 8～32V | 8～32V | 8V～68V | 8V～68V |
| Max. PV open circuit voltage | 100V 92V |
100V 92V |
150V 138V |
150V 138V |
| Lead-acid battery type | Sealed/Gel/ Flooded/User |
Sealed/Gel/ Flooded/User |
Sealed/Gel/ Flooded/User |
Sealed/Gel/ Flooded/User |
| Lithium battery type | LiFePO4 Li(NiCoMn)O2 User |
LiFePO4 Li(NiCoMn)O2 User |
LiFePO4 Li(NiCoMn)O2 User |
LiFePO4 Li(NiCoMn)O2 User |
| Enclosure | IP33 | IP33 | IP33 | IP33 |

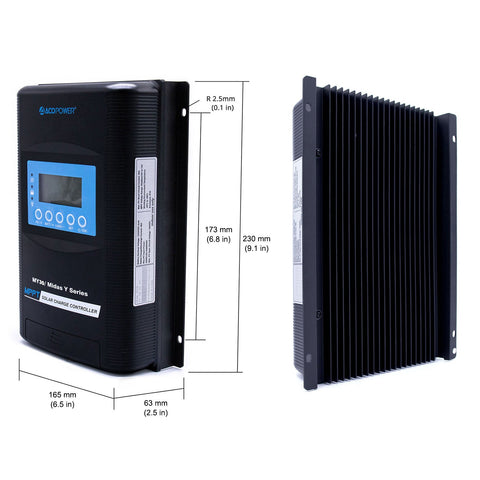

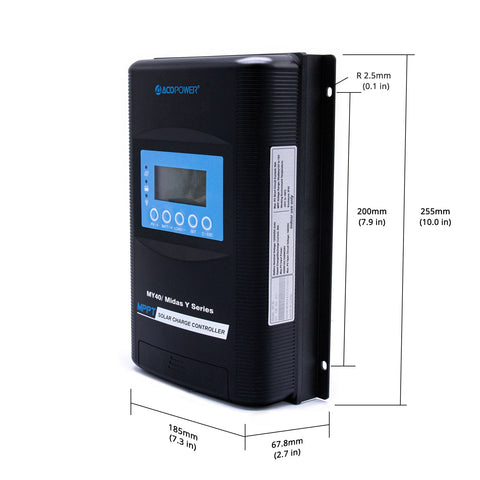

| Mounting dimension | 173x156mm | 200x176mm | 180x204mm | 260x220mm |
| Mounting hole size | Φ5mm | Φ5mm | Φ7mm | Φ7mm |
| Terminal | 8AWG (10mm²) | 6AWG (16mm²) | 6AWG (16mm²) | 6AWG (16mm²) |
| Recommended cable | 8AWG (10mm²) | 6AWG (16mm²) | 6AWG (16mm²) | 6AWG (16mm²) |

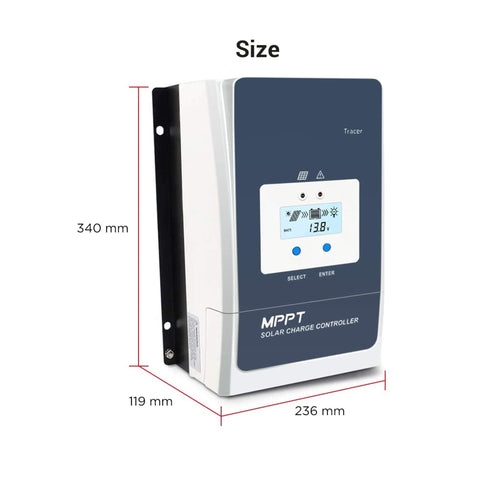

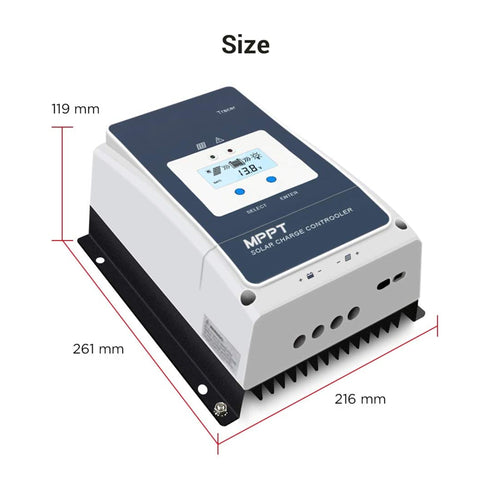

| Dimensions | 230x165x63mm (9.1x6.5x2.3 in) |
255x185x67.8mm (10.0x7.3x2.7 in) |
261x216x119mm (10.3x8.5x4.7 in) |
340x232x105.2mm (13.4x9.1x4.1 in) |
| Weight | 1.31 Kg (2.9 lbs) | 1.70 Kg (3.7 lbs) | 3.50 Kg (7.7 lbs) | 3.50 Kg (7.7 lbs) |
| Workmanship Warranty | 1-Year | 1-Year | 1-Year | 1-Year |
